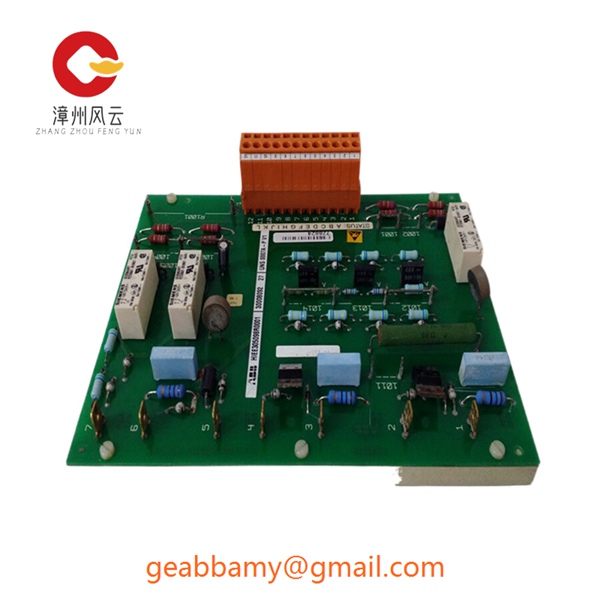

UNS0007A-P V1 HIEE305098R0001 HIEE410730P201

The UNS0007A-P V1 supports a direct connection to a 3V microcontroller, while the isolated bus side connects to a higher voltage 5V power supply for transmission of strong bus signals over distances of 100 metres or more.The ISL32704E is fully compliant with the EN 50081 and EN 50082-2 Electromagnetic Compatibility (EMC) standards, as well as the Information Technology Equipment (ITE) EN I/O options include three RS-232 ports, one RS-232/422/485 port, four USB 3.0 ports, two USB 2.0 ports, two Gigabit Ethernet ports, one audio (microphone in/line out), one VGA, one HDMI and one DisplayPort.

Key features and specifications of the UNS0007A-P V1
4Mbps data rate
2.5kVRMS isolation per UL 1577 and 600VRMS operating voltage per VDE 0884
Supports 3V to 5V power supplies
Single unit load allows up to 32 devices on the bus
50kV/µs (typical), 30kV/µs (minimum) common-mode transient immunity
Barrier life up to 44,000 years
15kV ESD bus pin protection
Thermal shutdown protection prevents damage during bus contention
Operating temperature range: -40°C to +85°C
ANSI RS-485 compliant
