TRICONEX 3704E Isolated Analog Input Module

Technical parameters of TRICONEX 3704E module

1. Basic information
Product Type: Isolated Analog Input Module (Triple Redundancy Structure)
Model: 3704E
Application areas: industrial automation, power, petrochemicals, manufacturing, transportation systems, medical equipment, environmental monitoring, building automation, etc.
2. Electrical parameters
Input voltage range:
0-5V or 0-10V (selected through TriStation software)
Input resistance (load):
Minimum 30 megaohms (DC)
Power off resistor:
Minimum 30 megaohms (DC)
Input over range protection:
150V DC/115V AC continuous
3. Accuracy and Performance
Accuracy:
FSR (Full Scale Range)<0.25% (within the range of 0 ° C to 60 ° C)
Common mode rejection:
-90 dB @ 60Hz (minimum)
-100 dB @ DC (minimum value)
Common mode range:
+200V peak value
Normal mode suppression:
8Hz: – 3 dB @ 60Hz
-17 dB @ 120Hz
-23 dB
4. Isolation and protection
Pin isolation:
20 kW (typical value)
Protection function:
Continuous overvoltage protection
Current range: 0-20 mA
Diversion resistor:
250 ohms at 5V
500 ohms at 10V
5. Physical parameters
Transport weight:
4 kilograms
6. Functional characteristics
Triple redundancy design: Provides high reliability and fault tolerance.
Supporting communication protocols:
Modbus
Ethernet/IP
DeviceNet
ControlNet
Diagnostic function:
Built in fault diagnosis and self checking functions, automatically detect and report potential faults.
Programmability:
Supports programmable working modes and logic, and users can customize settings according to their actual needs.

.

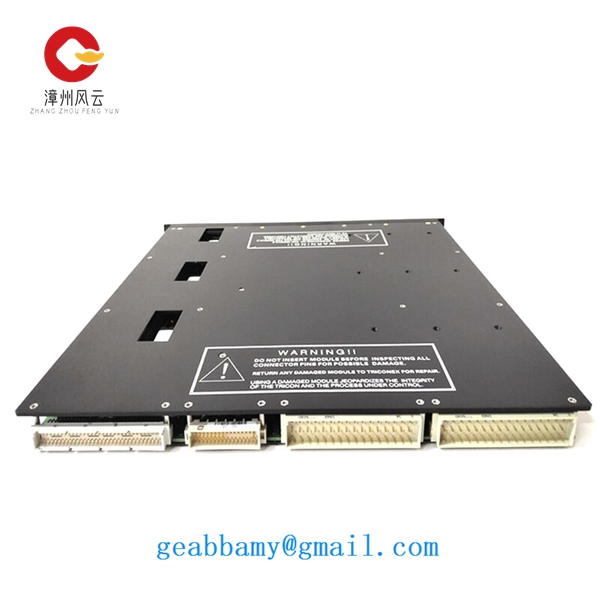

Product related pictures:
