TEWS TPMC815-11 interface controller

The technical parameters of TEWS TPMC815-11 controller are as follows:

1. Module specifications
Type: Single width 32-bit PMC module
Standard: Complies with IEEE P1386.1 standard
Interface: PCI 2.1 compatible interface
Size: 149 mm x 74 mm
2. Processor and Memory
Processor: equipped with a central processing unit (CPU), used to control and coordinate the operation of a system or device
Memory: Built in dual port RAM, supporting efficient data processing
3. Communication interface
ARCNET interface: Based on COM20020 controller, supports multiple network topologies such as star, tree, bus, etc
Transmission speed: Maximum speed of 2.5 Mbps (TPMC815-11x model), suitable for long-distance transmission
Isolation interface: configured with isolated RS485 differential driver interface, built-in DC/DC converter
4. Protection function
Multiple protection: equipped with overcurrent protection, overvoltage protection, over temperature protection and other functions to ensure the safety of modules and connected devices
5. Environmental adaptability
Working temperature: suitable for harsh industrial environments, capable of stable operation under high temperature, low temperature, humidity, vibration and other conditions
Protection level: The specific protection level is not explicitly mentioned, but the module design emphasizes high reliability and anti-interference ability

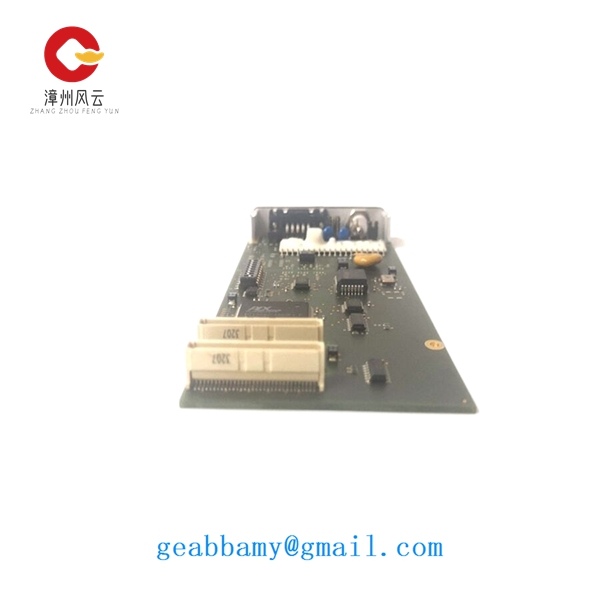

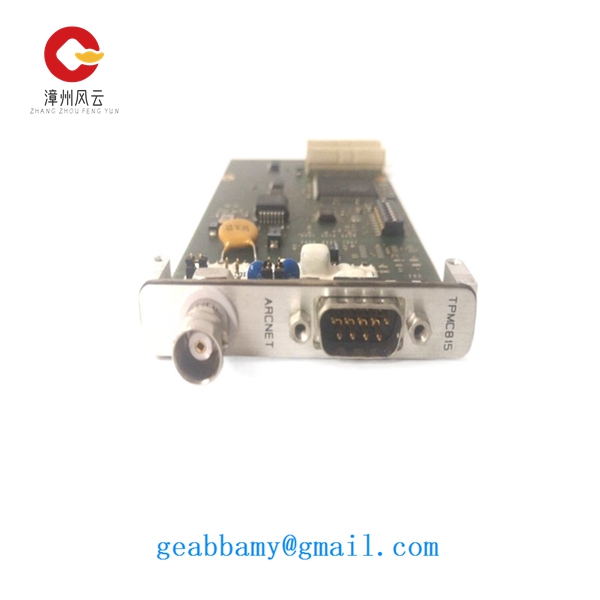

Product related pictures:
