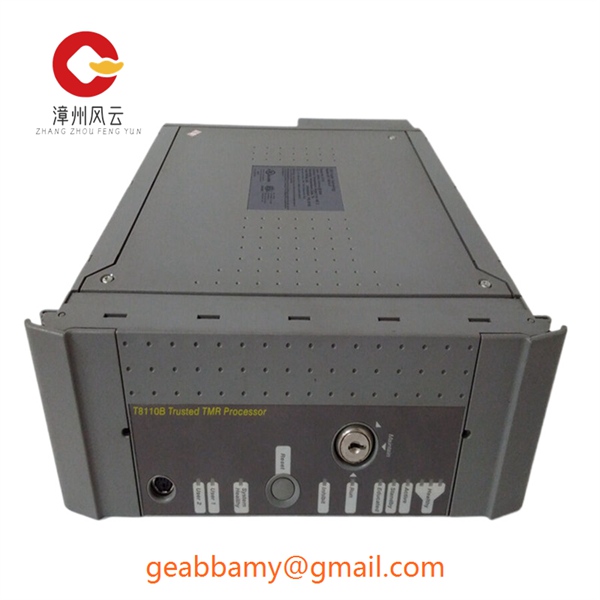

T8110B

The T8110B connects new digital and analogue I/O expansion modules up to 40 analogue I/O ports, 160 digital I/O ports and 4 encoder/counter ports. The new I/O solution is designed to be more compact than before, freeing up CPCI slots for other applications. The new series is suitable for high-speed and real-time measurement tasks as well as open and closed loop control tasks in industry. The modular Sicomp industrial minicomputer with 19-inch pull-out unit design is expandable via CPCI ports using the new CPCI-SFT200 base module.The T8110B’s level of analogue I/O performance is the key to advanced multichannel receivers.

The T8110B features four encoder/counter ports as well as four communication ports for connecting to the new I/O expansion modules. The base module is then expanded with digital and analogue I/O modules, depending on the application. The controller integrated on the base module reduces the burden on the CPU when controlling and monitoring the I/Os. The analogue I/O module has more than eight analogue inputs with selectable input voltage ranges, eight outputs and four PT100 connections for temperature acquisition. The Digital I/O Module provides sixteen isolated digital inputs/outputs (including power supplies) and eight digital, 0.1 ms, 24 volt inputs (including power supplies). Allows the display client to be linked to the user rather than a specific thin client. Users can then access their own virtual displays by simply authenticating to any thin client!
