Precision Step Systems FLA6041 Module

Precision Step Systems FLA6041 Module Technical Parameters

1、 Basic specifications
model: FLA6041
Type: Quick linear actuator
Origin: Germany
Scope of application: Suitable for automation equipment that requires high-speed, high-precision linear motion, such as industrial robotic arms, precision positioning systems, etc.
2、 Performance parameters
speed
Maximum speed: 3600 rpm (or 60 r/s, depending on the length of travel).
Feed rate: 1 m/s.
accuracy
Position tolerance: ± 0.1 mm (at a feed rate of 1 m/s).
Repetitive positioning accuracy: high (specific values need to refer to the product manual, usually up to micrometer level).
Stroke Length
Provide multiple itinerary options, such as:
Diaphragm type: 4 mm (model 6041).
Cylinder type: 5 mm, 8 mm, 12 mm, 20 mm, 25 mm, etc.
Load capacity
Depending on the specific application and travel length, the load capacity may vary, and reference should be made to the selection guide.
3、 Drive and Control
Drive mode
Supports compressed air or vacuum activation.
control interface
Compatible with SRB series control electronic devices, supporting multiple applications such as classification, cutting, positioning, etc.
response characteristic
High speed response with minimal position lag.
4、 Environment and reliability
operation temperature
The specific temperature range should refer to the product manual, which is usually suitable for industrial environments.
protection grade
Compliant with industrial standards and suitable for harsh environments.
service life
Long design lifespan, predictable lifespan of friction materials, and ease of regular maintenance.

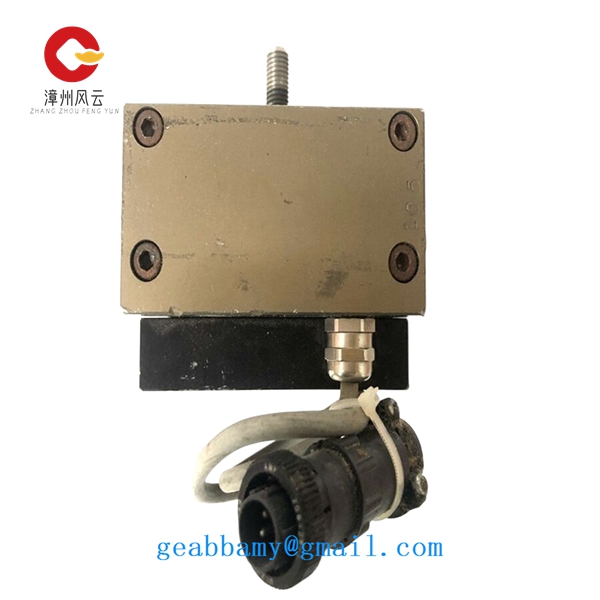

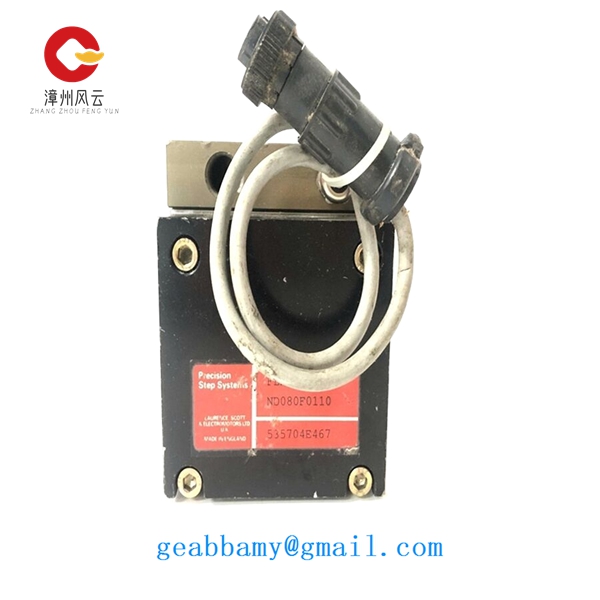

Product related pictures:
