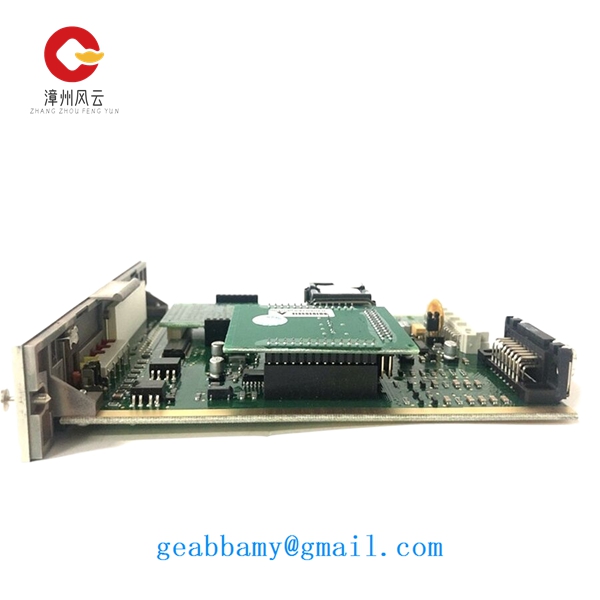

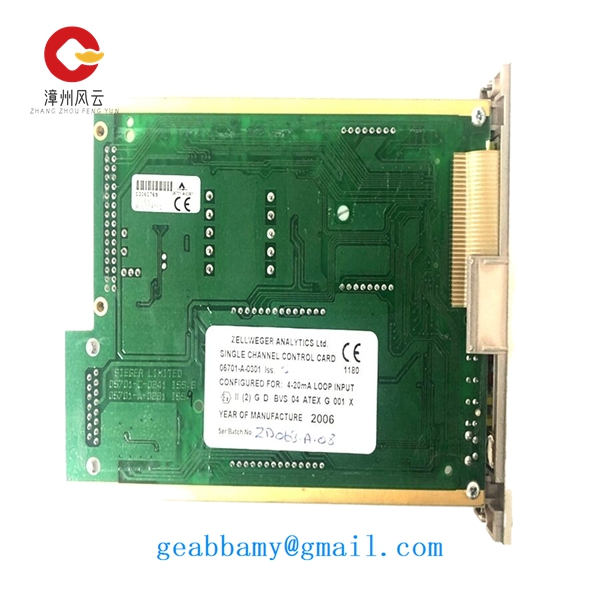

HONEYWELL 05701-A-0301 Single channel control card

Technical parameters of HONEYWELL 05701-A-0301 module (based on publicly available information):

1、 Basic parameters
Model and specifications
Model: 05701-A-0301
Type: Single channel control card/Input/Output control module
Scope of application: Industrial automation, process control systems (such as DCS)
Physical parameters
Dimensions: Standard industrial dimensions (refer to product manual for details)
Installation method: DIN rail or rack installation
2、 Functional characteristics
control ability
Support single channel control, suitable for monitoring and adjusting a single parameter (such as temperature, pressure, flow).
Support PID (Proportional Integral Derivative) control algorithm to achieve high-precision process control.
Communication and Integration
Supports multiple industrial communication protocols (such as Modbus, EtherNet/IP, Profinet, etc.) for easy integration with other automation devices.
I/O access can be extended through the C300 I/O system to achieve distributed control.
data processing
Data collection and transmission: Supports sensor data collection and transmits the data to the upper level monitoring system.
Support real-time monitoring and historical data recording, facilitating production process analysis and optimization.
Safety and reliability
Built in firewall (such as EHPMX version) to enhance data access security.
Industrial grade design, suitable for harsh industrial environments such as wide temperature range, dust-proof, and electromagnetic interference resistance.
3、 Technical specifications (speculated)
Due to the lack of official disclosure of detailed technical parameters, the following are estimated values based on similar products:

Speculative value of parameter category
1 input channel (single channel design)
Output type: Analog/Digital (specific to be confirmed)
Power supply voltage 24V DC (industrial standard)
Working temperature range -20 ° C to+70 ° C (industrial grade)
Protection level IP20 (rack mounted) or higher
Response time<10ms (specific to be confirmed)
Data resolution 16 bits (high precision)
