HIMA F35 Compact Industrial Controller System

Technical parameter description of HIMA F35 module

The HIMA F35 module is a high-performance and highly reliable safety control system module designed specifically for the industrial automation field, widely used in process industries, machine automation, and safety related building automation systems. The following is a description of its main technical parameters:

1. Basic parameters
Model and type:
Model: F35 (specific variants such as 982200416)
Type: Compact Industrial Controller System
Series: HIMA HIMatrix Series
Processor and Memory:
Processor: 32-bit ARM Cortex-M3
Memory: 128 MB Flash, 64 MB RAM (some models support 256 MB Flash)
Input/output configuration:
Number input: 24
Digital outputs: 8
Analog inputs: 8
Counter: 2
Communication interface:
Supports multiple protocols such as Ethernet (100Base TX), RS485, etc
Equipped with FB interface, supporting SafeEthernet protocol communication
Physical characteristics:
Size: Approximately 150mm x 100mm x 50mm
Weight: Approximately 500 grams
Protection level: IP67 (some models are IP55)
Working temperature range:- 20 ° C to+70 ° C (some models range from -20 ° C to+60 ° C)
2. Safety performance
Security level:
Compliant with SIL 3 (IEC 61508, IEC 61511, IEC 62061) standards
Support Cat 4 (EN 954-1) and PL e (EN ISO 13849-1)
Redundant design:
Provide excitation redundancy protection to ensure high reliability of the system
authentication:
Certified by T Ü V, suitable for Explosion proof Zone 2

.

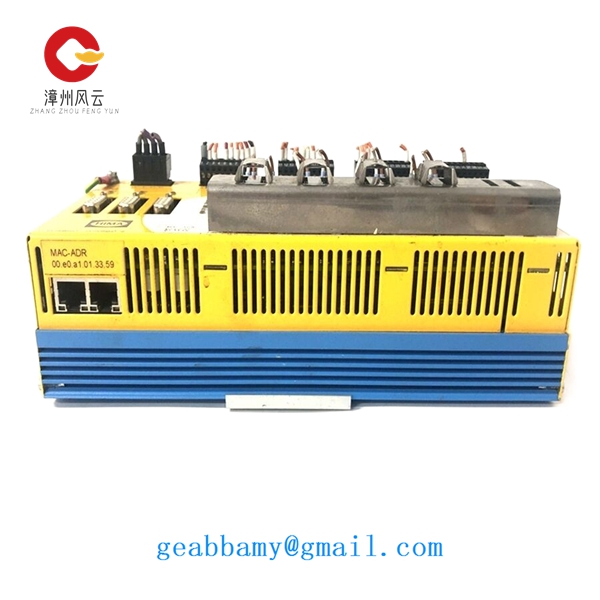

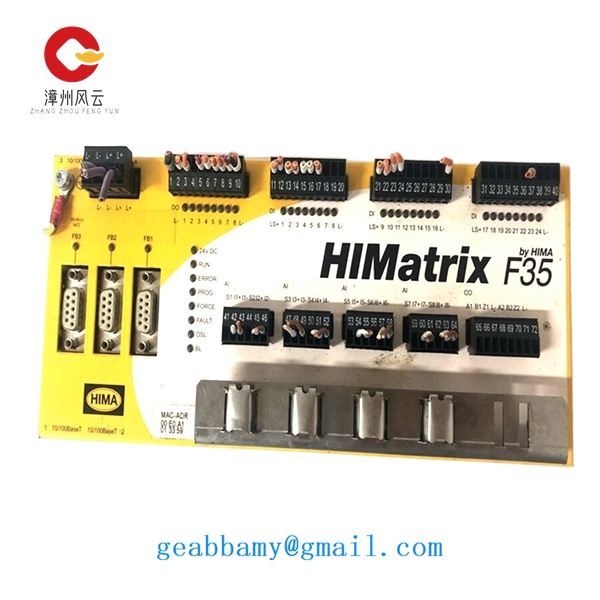

Product related pictures:
