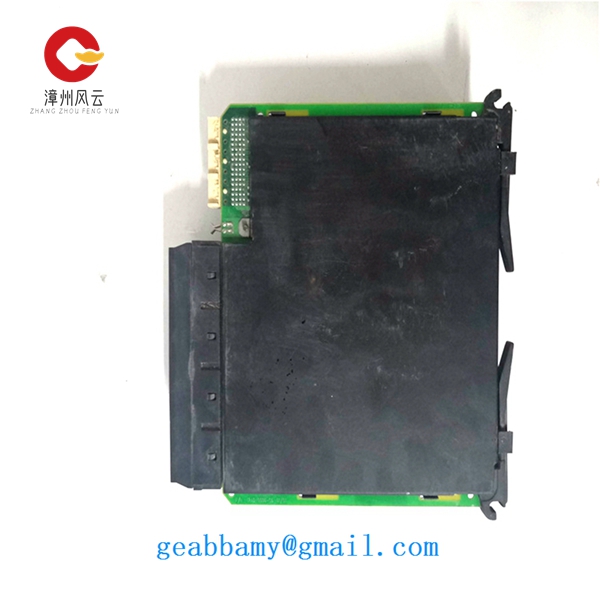

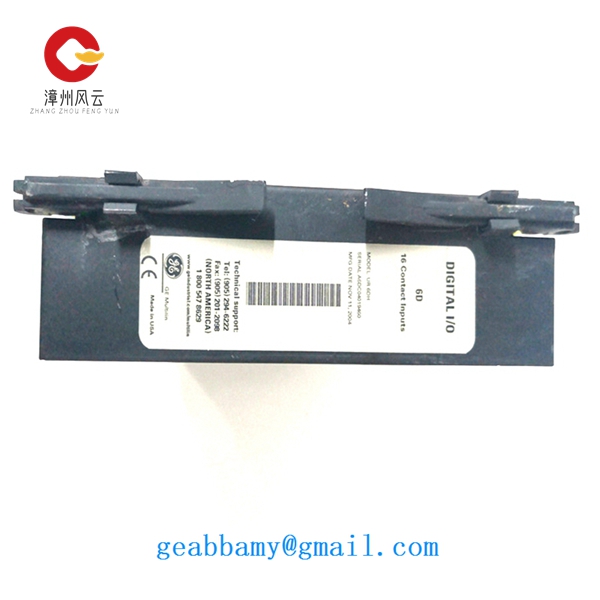

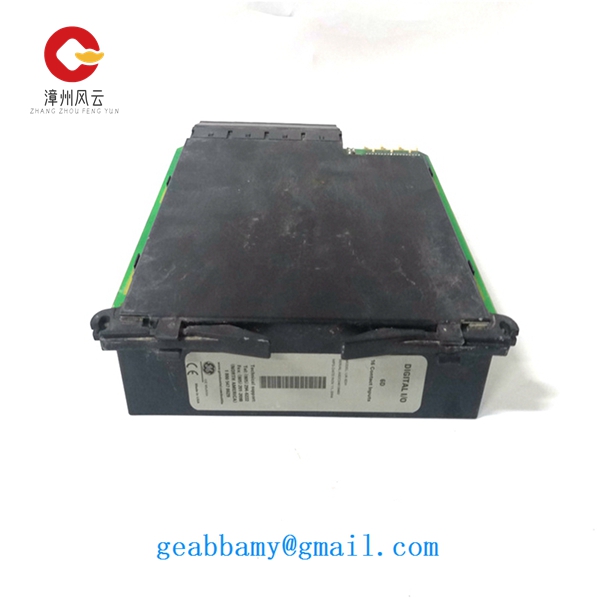

• • Technical Parameters for GE Multilin UR6DH & UR6CH Digital I/O 6D (16 Digital Inputs)

    (Official Specifications & Key Features in English)

    1. UR6DH General Overview

    The GE Multilin UR6DH and UR6CH are high-performance Digital Input (DI) modules designed for industrial automation, process control, and protection systems. Both models support 16 digital input channels with high-speed sampling, noise immunity, and flexible configuration options.

    • Series: GE Multilin UR Series (Universal Relay Platform)
    • Application: SCADA, PLC integration, motor control, substation automation, and IIoT.
    •

    ---

    2.UR6DH  Key Technical Specifications

    Parameter	Details
    Number of Inputs	16 digital inputs (24V DC, 110V DC, or 220V DC configurable)
    Input Type	Dry contact, wet contact (NPN/PNP), or voltage-level sensing (programmable)
    Input Voltage Range	24V DC (±15%), 110V DC (±20%), or 220V DC (±20%)
    Sampling Rate	≤1 ms per channel (high-speed mode)
    Response Time	< 2 ms (typical)
    Isolation	1500V DC (channel-to-channel, channel-to-ground)
    Input Impedance	> 10 kΩ (for voltage inputs)
    Debounce Filtering	Programmable (1 ms to 100 ms)
    LED Indicators	16 per-channel status LEDs (green/red for input state)
    Power Supply	24V DC ±20% (isolated)
    Power Consumption	< 5W (full load)
    Operating Temperature	-20°C to +70°C (-4°F to +158°F)
    Storage Temperature	-40°C to +85°C (-40°F to +185°F)
    Humidity	5% to 95% non-condensing
    Mounting	DIN rail or panel mount (IP20)
    Communication Protocols	Modbus RTU/TCP, DNP3, IEC 61850 (UR6CH only)
    Certifications	CE, UL, cUL, IEC 61010-1, IEC 61850-3

    ---

    3.UR6DH  Advanced Features

    • High-Speed Digital Input (HSDI) – Supports fast transient detection (e.g., breaker status, trip signals).
    • Programmable Logic Controller (PLC) Integration – Compatible with GE RX3i, PACSystems, and third-party PLCs.
    • Event Timestamping – Precise time-stamping of input changes (μs resolution via IRIG-B/PTP).
    • Self-Diagnostics – Continuous health monitoring (input short-circuit, open-circuit detection).
    • Security – Secure boot, encrypted firmware updates (UR6CH only).
    •
