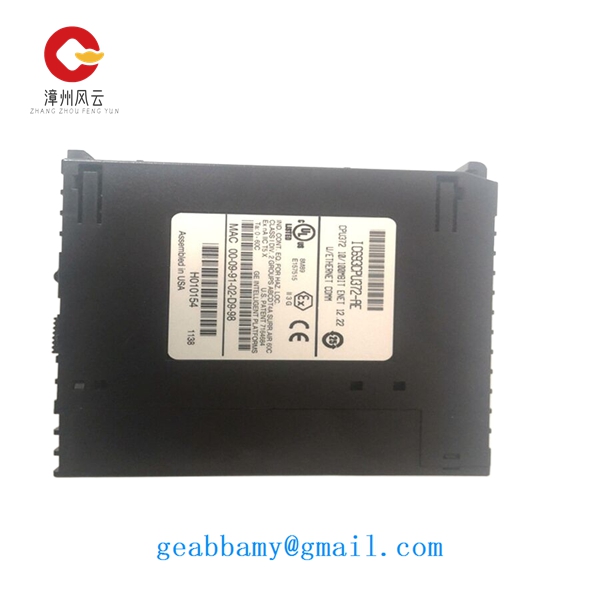

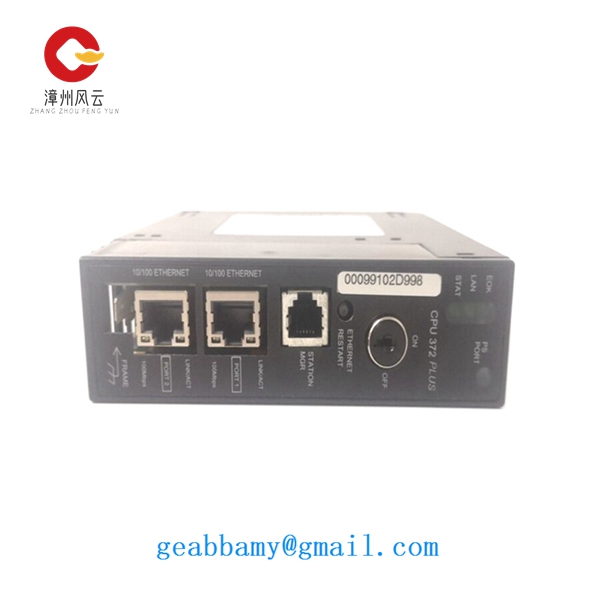

GE IC693CPU372-AE program memory Module

Technical specifications of GE IC693CPU372-AE module

1. Basic parameters

Brand and Model: GE (General Electric), IC693CPU372-AE。
Processor: AMD SC520， The clock speed is 133 MHz.
User program memory: Maximum 240 KB.
Input/output points:
Discrete input: 2048 points.
Discrete output: 2048 points.
Analog input: Maximum 32640 words (128-32640 configurable).
Analog output: Maximum 32640 words (128-32640 configurable).
2. Communication interface

Ethernet interface:
Quantity: 2.
Transmission speed: 10/100 Mbps.
Supporting protocols: Industrial Ethernet Modbus TCP/IP。
SRTP Server Function: Supports requests from PLC programming software, SRTP applications, or another PLC acting as a client.
Other communication options: Serial communication port, supporting multiple connection methods.
3. Functional characteristics

IC693CPU372-AE Multi tasking: supports simultaneous execution of multiple control tasks, improving system efficiency and flexibility.
User memory: Built in programmable memory used to store control logic, programs, and data.
Programming software: supports the use of specialized programming software (such as Proficy Machine Edition) to create and edit control logic.
Remote monitoring: Supports remote monitoring and maintenance, and users can access it remotely through a network connection.
4. Power supply and protection

Power input: DC 9-36 V， Typical value is DC 24 V, with power consumption less than 4 W.
Power protection:
Dual power redundant input.
DC 1500 V voltage isolation.
Reverse protection.
Relay alarm output: Link fault and power fault alarm output, contact capacity DC 48 V/1 A.
5. Protection level and installation

IC693CPU372-AE Protection level: IP30。
Shell design: Wave patterned aluminum reinforced shell.
Installation method: Standard industrial 35mm rail installation.
