Force PowerCore CPCI-680 Memory module

Technical parameters of Force PowerCore CPCI-680 module

1. Processor and Memory
Processor: PowerPC G4 7400， Operating frequency of 400 MHz, with 1 MB of secondary cache.
Memory: Supports up to 1 GB SDRAM, providing high-speed data processing capabilities.
2. Storage and Expansion
Storage: Onboard 16 MB user Flash and 1 MB boot Flash, supporting code storage and system startup.
Extension interface:
PMC slots: 2 PMC (PCI Mezzanine Card) slots for expanding I/O or functional modules.
Storage interface: Optional Fast Wide SCSI-2 interface, supporting high-speed and large capacity storage devices.
3. Network and Communication
Ethernet: 2 independent Fast Ethernet interfaces (10/100 Mbps), supporting real-time data transmission.
Serial interface: 2 standard serial ports (expandable to 6), compatible with RS-232/422/485 protocol.
Hot swappable support: Complies with the CompactPCI hot swappable specification, facilitating system maintenance and upgrades.
4. Power supply and power consumption
Input voltage: Supports 240 VDC (DC) input, suitable for industrial environments.
Power consumption: Low power design, specific power consumption values need to refer to application scenarios and configurations.

.

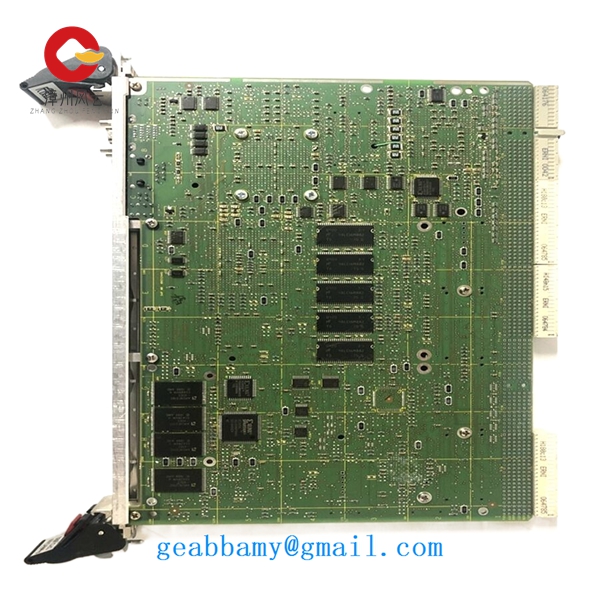

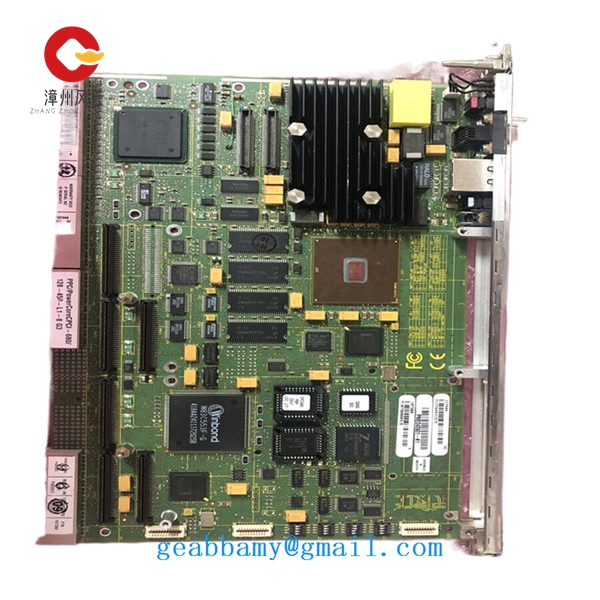

Product related pictures:
