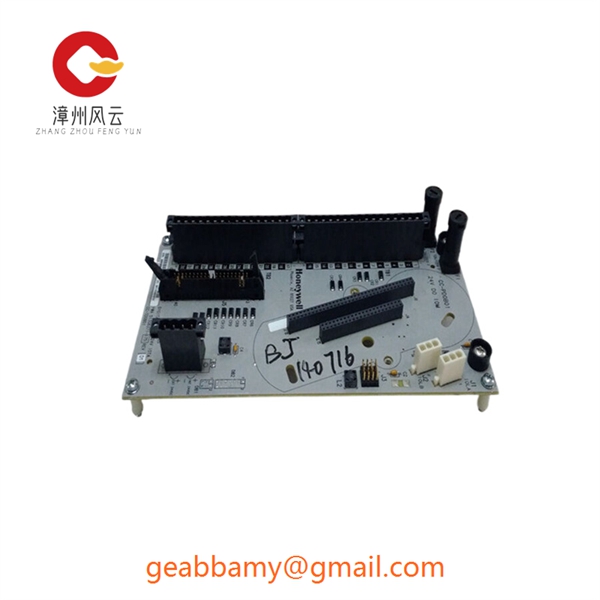

CC-TDOB01 51308371-175

The CC-TDOB01 51308371-175 accepts up to four discrete and six analogue inputs from a variety of devices and sensors. HART data from connected field devices is transferred to its analogue outputs via SLAs, enabling bi-directional communication between the connected host and asset manager for continuous monitoring and programming. Its four relay outputs and up to four discrete contact closure outputs can be driven by any of 16 internally configured alarms, where single or multiple alarms can be assigned to each relay or discrete output. With secure programming and communication features, security jumpers can be set to prevent unauthorised reprogramming and ensure read-only communication over Ethernet and MODBUS ports.

CC-TDOB01 51308371-175 triggered by any input or internal diagnostic fault. Three optional analogue outputs allow transmission of any input or internally calculated equation or variable. Using the SLA’s DTM and simple drop-down menus and checkboxes, the SLA can be easily programmed using any FDT-compliant host computer; no customisation or licensing software is required. This easy-to-use functionality includes a powerful equation editor that allows users to create monitoring, alarm and control scenarios, including simple to complex equations using timers, running min/max functions, pre-built analogue and discrete logic functions and more. Supports MODBUS/TCP and MODBUS RTU industrial protocols and features an embedded read-only web server that allows all inputs, outputs, internal variables and various other parameters to be read using a simple web browser.
