BENTLY 3500/15 106M1079-01 module

BENTLY 3500/15 106M1079-01 Module Technical Parameters

1、 Basic information of module
Model: 3500/15 106M1079-01
Brand: BENTLY NEVADA
Type: Power module
Application areas: vibration monitoring, equipment health monitoring, industrial automation, process control, power system and environmental monitoring, etc.
2、 Electrical parameters
Input Voltage
Communication input: 85Vac to 264Vac (47Hz-63Hz), supporting a globally applicable voltage range.
DC input: 20Vdc to 30Vdc (optional configuration).
Output parameters
Output voltage: 24Vdc (typical value, supports redundant configuration).
Output current: maximum 5A (adjusted according to load requirements).
Power: 120W (maximum).
Efficiency and stability
Conversion efficiency: ≥ 90% (at full load).
Voltage regulation rate: ± 1% (when the input voltage changes).
Load adjustment rate: ± 2% (when the load changes).
3、 Environmental parameters
operation temperature
Operating temperature:- 20 ° C to+70 ° C.
Storage temperature:- 40 ° C to+85 ° C.
humidity
Operating humidity: 5% to 95% RH (non condensing).
protection grade
Shell: IP20 (compliant with IEC 60529 standard).
4、 Mechanical parameters
size
Height: 3U (133.35mm, compliant with 19 inch rack standard).
Width: 482.6mm (standard 19 inches).
Depth: 200mm (specific depth may vary slightly due to configuration).
weight
Net weight: approximately 2.5kg.

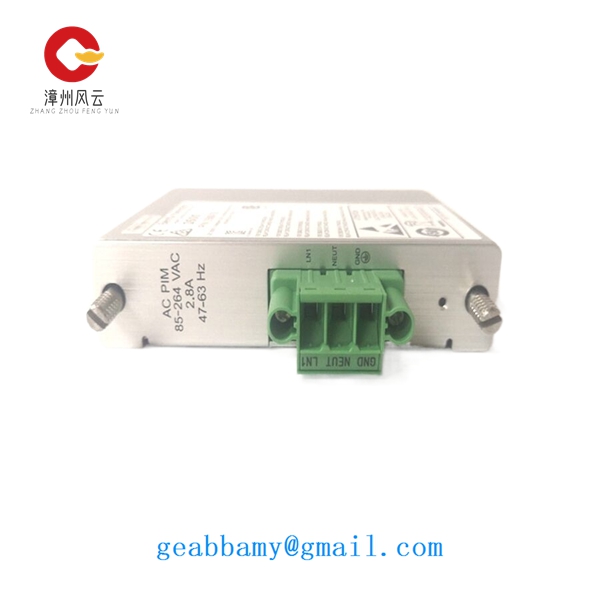

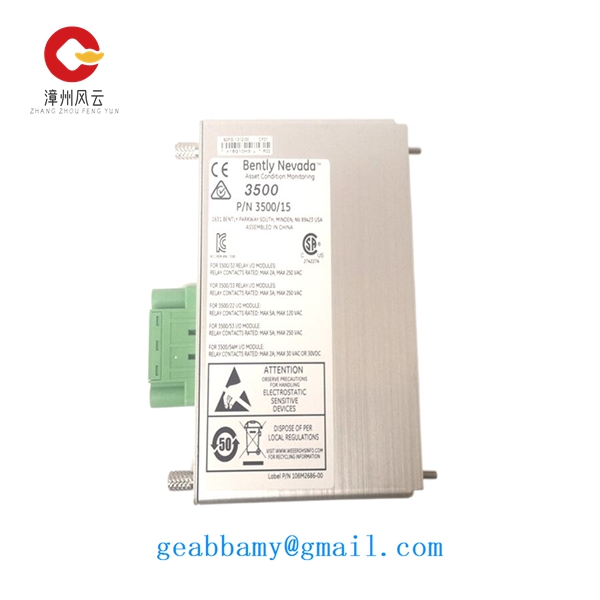

Product related pictures:
