BENTLY 167699-02 1900/65A-01-01-00-00 Vibration monitoring module

The technical parameters of BENTLY 167699-02 1900/65A-01-01-00-00 module are as follows:

1. Basic information
Brand: BENTLY (Bentley Nevada)
Model: 167699-02 1900/65A-01-01-00-00
Product type: Vibration monitoring module (usually used for status monitoring of rotating machinery)
Application areas: Industrial automation, monitoring of rotating equipment (such as steam turbines, compressors, generators, etc.)
2. Performance parameters
Monitoring function:
Real time monitoring of vibration signals from equipment (such as displacement, velocity, acceleration).
Support multi-channel vibration signal acquisition.
Provide vibration trend analysis, fault diagnosis, and alarm functions.
Measurement range:
Vibration displacement: typically supports ± 100 μ m to ± 1 mm (specific range may vary depending on configuration).
Vibration speed: typically supports 0 to 100 mm/s (specific range may vary depending on configuration).
Vibration acceleration: typically supports 0 to 100 g (specific range may vary depending on configuration).
Frequency range:
Usually supports vibration signal acquisition from 0 to 10 kHz (specific range may vary depending on configuration).
Accuracy:
The vibration measurement accuracy is usually ± 1% or higher (specific accuracy should refer to the product manual).
3. Input/output parameters
Input:
Vibration sensor input (supports IEPE or charge type sensors).
Sensor power supply: usually 24 VDC (specific power supply parameters need to refer to the product manual).
Output:
Analog output: 4-20 mA or 0-10 V (optional).
Digital output: Supports communication protocols such as Modbus, Profibus, Ethernet, etc. (specific protocols should refer to the product manual).
Alarm output: Supports relay alarm output (such as vibration limit alarm).
4. Environmental parameters
Working temperature: typically -20 ° C to+70 ° C (specific range to be referred to in product manual).
Storage temperature: typically -40 ° C to+85 ° C (specific range to be referred to in product manual).
Humidity: 5% to 95% RH (non condensing).
Protection level: usually IP20 or higher (specific level should refer to the product manual).
5. Electrical parameters
Power supply voltage: usually 24 VDC or 115/230 VAC (specific voltage should refer to the product manual).
Power consumption: usually less than 10 W (specific power consumption should refer to the product manual).
Electromagnetic compatibility: Complies with international standards such as CE and FCC.
6. Mechanical parameters
Size: Standard 19 inch rack installation size (specific size needs to refer to the product manual).
Weight: usually less than 2 kg (specific weight should refer to the product manual).

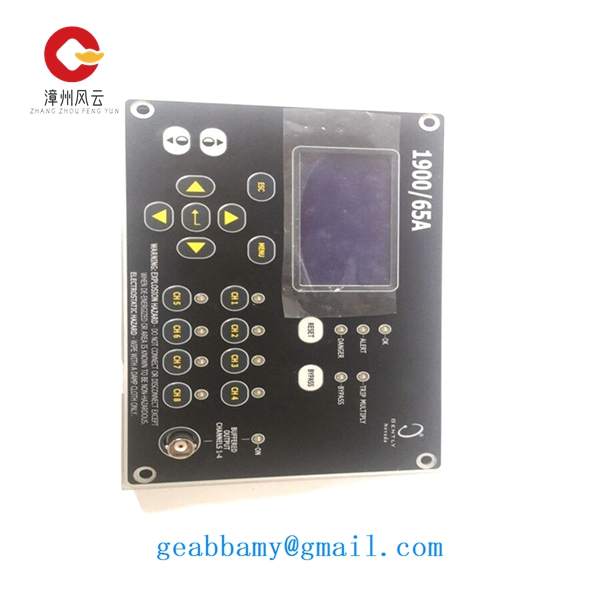

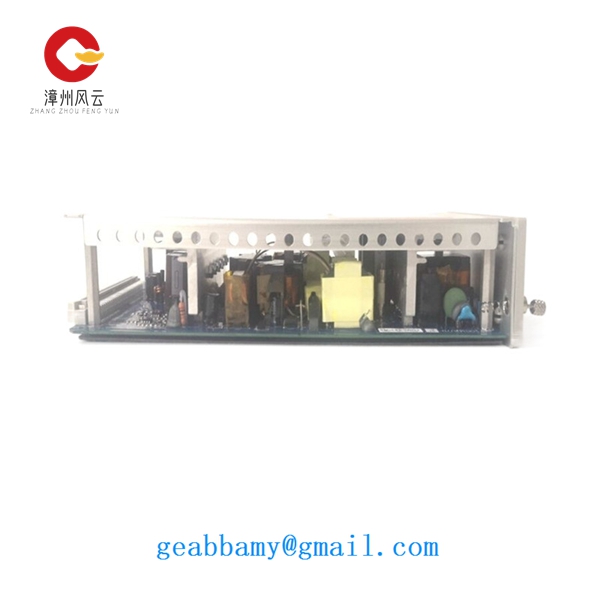

Product related pictures:
