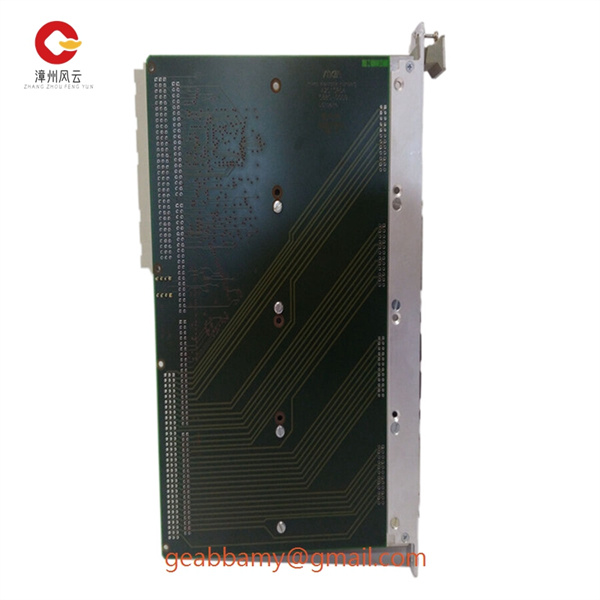

A201SR04 01A201S12 5880-0009

A201SR04 01A201S12 5880-0009 allows complete auto-discovery of all I/O modules in the local base, simplifying system configuration. For larger applications, one or more remote I/O master modules mounted in the local base can be individually connected to up to 16 remote I/O subsystems, providing hundreds of additional I/O points.The H2 family of CPUs reduces system cost and space by including embedded communication ports. The H2-DM1 CPU with one serial port and one USB port features four independently configurable timer/counter channels (up to 250 kHz) and two pulse output generators (up to 250 kHz). All configuration and profile setting functions are built into the Do-more Designer software to integrate the module with application logic.

A201SR04 01A201S12 5880-0009 offers an advanced instruction set to reduce programming time, superior memory mapping for improved data management, and data structures to simplify initial programming and long-term software maintenance.Do-more PLCs enable developers to write program code before selecting specific target hardware. Nicknames can be assigned to inputs and outputs and then later bound to the physical configuration. In data memory, developers can assign partition sizes based on variable types for maximum flexibility.
