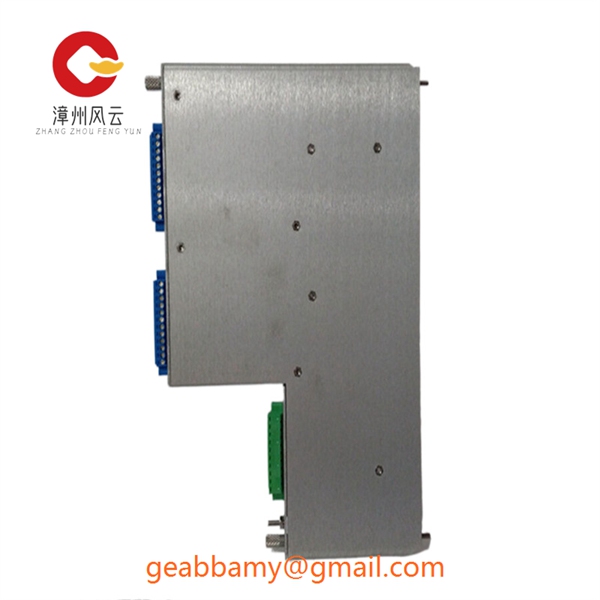

135489-03

The 135489-03 provides 8 user assignable analogue output channels and is ideal for users who need to communicate with an existing analogue data acquisition system. two buttons on the front panel of the WSDA-Base -101 can be programmed using the Node Commander to carry out user selectable functions including pairing nodes, initiating sampling, enabling and triggering data logging, sleeping nodes and sleeping/waking nodes. /wake nodes. A serial RS232 communication interface is provided to meet the user’s serial communication needs common in industrial applications, such as connecting to a PLC.

The 135489-03 provides a simple, convenient solution for connecting sensors and controllers with incompatible DC signals. It is a component that should be used as a back-up in manufacturing and packaging plants where sometimes sensor signals are unknown and need to be replaced. The Logic Signal Inverter converts sensor input/output signals from positive logic (PNP) to negative logic (NPN) devices and vice versa. It is packaged in a narrow case (less than half an inch wide) for compact assembly, with standard IEC DIN rail mounted terminal blocks, and is priced at a fraction of the cost of replacing a typical I/O module on a PLC.
